Preventing Double Vision from Botox: Mastering the Lateral Rectus Safety Zone

When treating crow’s feet with Botox, there’s a complication that can instantly turn a happy patient into a distressed one: double vision. This occurs when botulinum toxin inadvertently affects the lateral rectus muscle, and while it’s a known side effect, it’s also entirely preventable with proper technique and anatomical understanding.

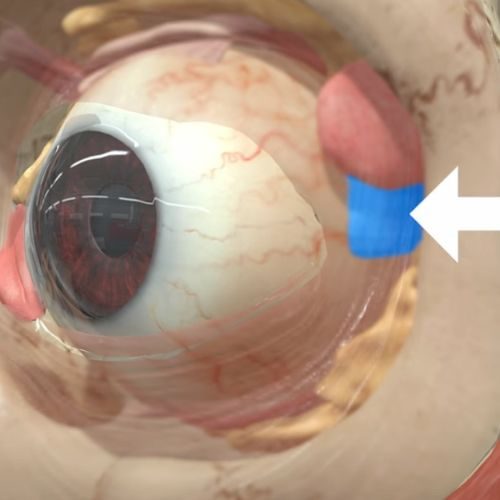

Understanding the Lateral Rectus Muscle

Let’s look at one of the most important muscles when avoiding complications in the eye – the lateral rectus. This muscle pulls your eye laterally away from the midline, which means every time you look left or right, your left or right lateral rectus is pulling the eye in that direction.

Now imagine what would happen if you weaken that muscle. If one muscle is weak, as you look left or right, the eye that is not affected will move and the eye that is affected will stay the same. You will immediately get double vision. This is a known side effect from botulinum toxin, and it is caused by treating the crow’s feet too close to the eye.

A Historical Note: The Discovery of Aesthetic Botox

An interesting side note on this topic is that the original discovery of using botulinum toxin in aesthetic medicine was made by an ophthalmologist and dermatologist partnership. This husband and wife clinic were using botulinum toxin in their ophthalmology clinic, and they discovered by accident that many of their patients were coming back to the skin clinic wanting more botulinum toxin because they had noticed what a great improvement it made to wrinkles.

From its inception, botulinum toxin has spread and affected nearby muscles – and so it can work the other way too. You can be treating orbicularis oculi and affect the lateral rectus muscle. But good technique will reduce the risk hugely.

Personal Experience and Statistics

I’ve never had this side effect with any of my patients, and it’s largely down to leaving safety margins and injection strategies that reduce the risk of spread. While double vision from Botox is a known complication, it’s actually quite rare when proper techniques are followed.

Injection Strategies to Prevent Double Vision

Here are the injection strategies you can use to reduce the risk of lateral rectus palsy:

1. Depth Is Your First Defense

We’re usually treating the orbicularis oculi muscle – it’s the most superficial muscle and sits underneath a very thin layer of skin. The best injectors will only slide 1 or 2 mm into the skin, just beyond the point where the skin blanches. So when you inject, you just get a little bleb, and your botulinum toxin is sitting on top of the surface of the orbicularis oculi muscle.

This superficial placement acts as a defense against that toxin going deeper into the underlying structures. You also have protective layers underneath the muscle:

• A layer of fat
• The bone
• Potentially the orbital membrane (depending on where you’re injecting)

These layers protect the important structures. When you go too deep, you slice through all those layers. You also get an increase in bruising, but you massively increase your risk of affecting the lateral rectus.

2. The 1.5cm Safety Margin

The other critical area is how close you are to the actual orbital rim. Using the bone is ultimately the best defense you can have against getting product too deep. If there’s a bone in the way – great! The closer you get to the orbital rim, the more likely you’re going to be able to pass toxin beyond that point.

Leave a 1.5 cm margin from the orbital rim, which is often closer than you think. This ensures you’re always away from the eye.

3. Needle Direction Matters

Point your needles away from the eye if you can. I think it’s okay for experienced injectors because they have very good needle tip control. The reason you point away, though, is because new injectors often don’t just slide to the point they want to inject – they go too far in and then they come back out and then inject. This leaves a tract which allows toxin to spread.

Generally, point away from the eye until you are very confident in your technique.

The Resolution Problem for New Injectors

As a new injector, you’re working with what I call “low resolution” anatomy. This doesn’t mean you don’t know the anatomy – it means your precision isn’t refined yet. Being 5mm off in one direction or another might not seem significant to you, but it can make the difference between a safe injection and a complication.

Similarly, it can be easy to be 5 to 10mm out of position when there are distractions on the face. For example, if a patient has a large orbicularis oculi muscle with lots of lines and wrinkles, it may create confusion about the best placement, compared to a neat and discrete muscle where you can see more clearly where to inject.

Building Confidence Through Understanding

The key to becoming a confident injector who never causes double vision is understanding both the anatomy and the technique:

1. Know where the lateral rectus sits in relation to the orbital rim
2. Maintain proper depth – stay superficial in the orbicularis oculi
3. Respect the 1.5cm safety margin from the orbital rim
4. Control your needle direction – point away from the eye
5. Develop your anatomical resolution through practice and education

The Importance of Needle Tip Control

Experienced injectors have what we call “good needle tip control”. They know exactly where their needle tip is at all times and can place it precisely where intended without overshooting. This is a skill that develops with practice, but understanding the principles from the start will accelerate your learning curve. New injectors often make the mistake of inserting the needle too far towards the eye, then pulling back to inject. This creates a needle tract that can allow botulinum toxin to spread beyond your intended treatment area and potentially reach the lateral rectus muscle.

Prevention Is Always Better Than Treatment

While double vision from Botox is temporary and will resolve as the effects wear off, it can be extremely distressing for patients and can last several weeks to months. Prevention through proper technique is always preferable to managing a complication.

By following these injection strategies:

• Using superficial injection depth
• Maintaining the 1.5cm orbital rim margin
• Pointing needles away from the eye
• Developing excellent needle tip control

You can treat crow’s feet effectively while virtually eliminating the risk of causing double vision.

Conclusion

Double vision from inadvertent lateral rectus involvement is a completely preventable complication when treating crow’s feet with botulinum toxin. By understanding the anatomy, respecting safety margins, controlling injection depth, and developing good needle technique, you can confidently treat the periocular area without fear of this complication.

Remember, the lateral rectus muscle’s position close to the orbital rim makes it both a risk and, paradoxically, easier to avoid once you know where it is. With proper technique and anatomical knowledge, you can deliver excellent results for crow’s feet while keeping your patients safe from double vision.

The fact that I’ve never had this complication in any of my patients isn’t luck – it’s the result of consistently applying these safety principles. You can achieve the same track record by following these injection strategies and always respecting the anatomy.
